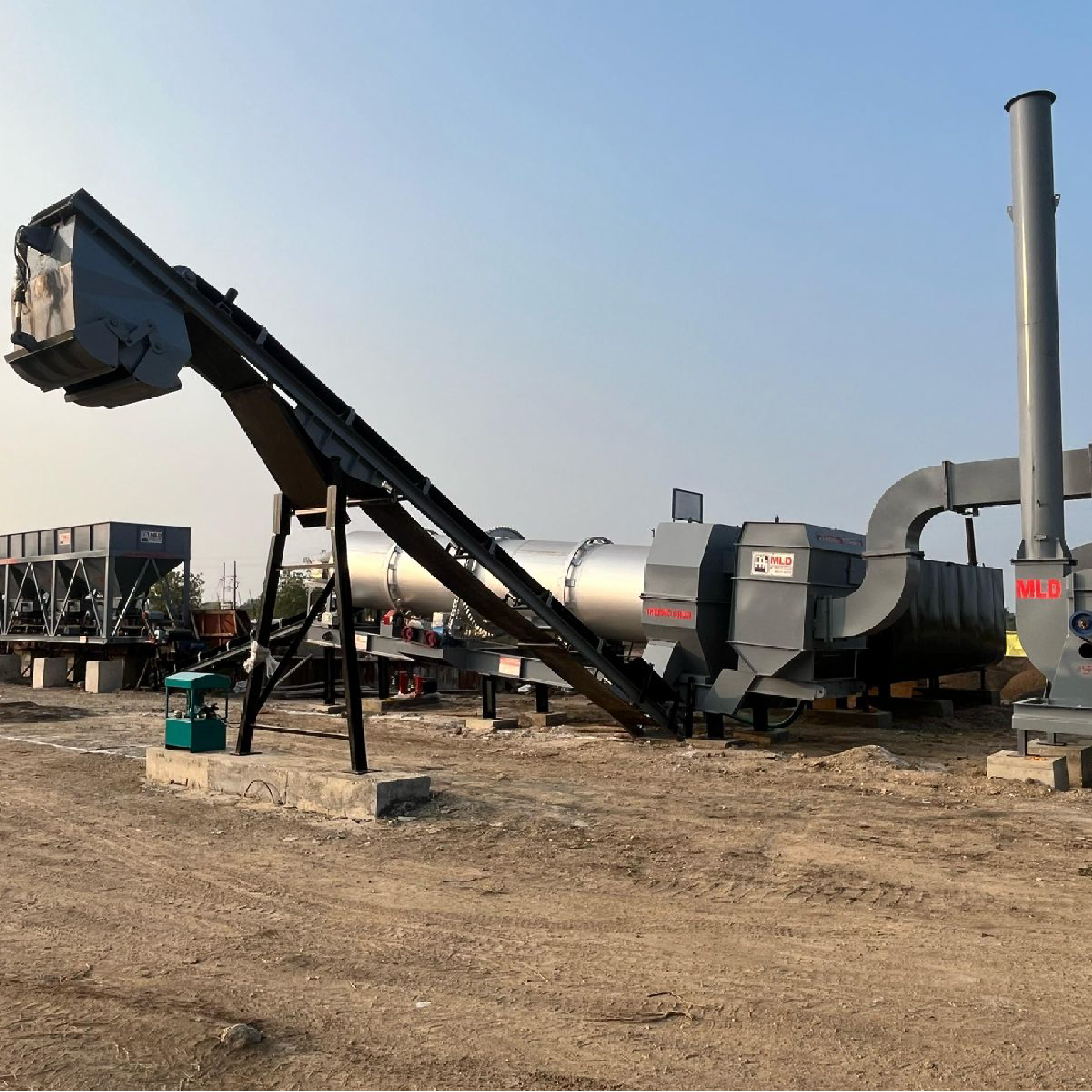

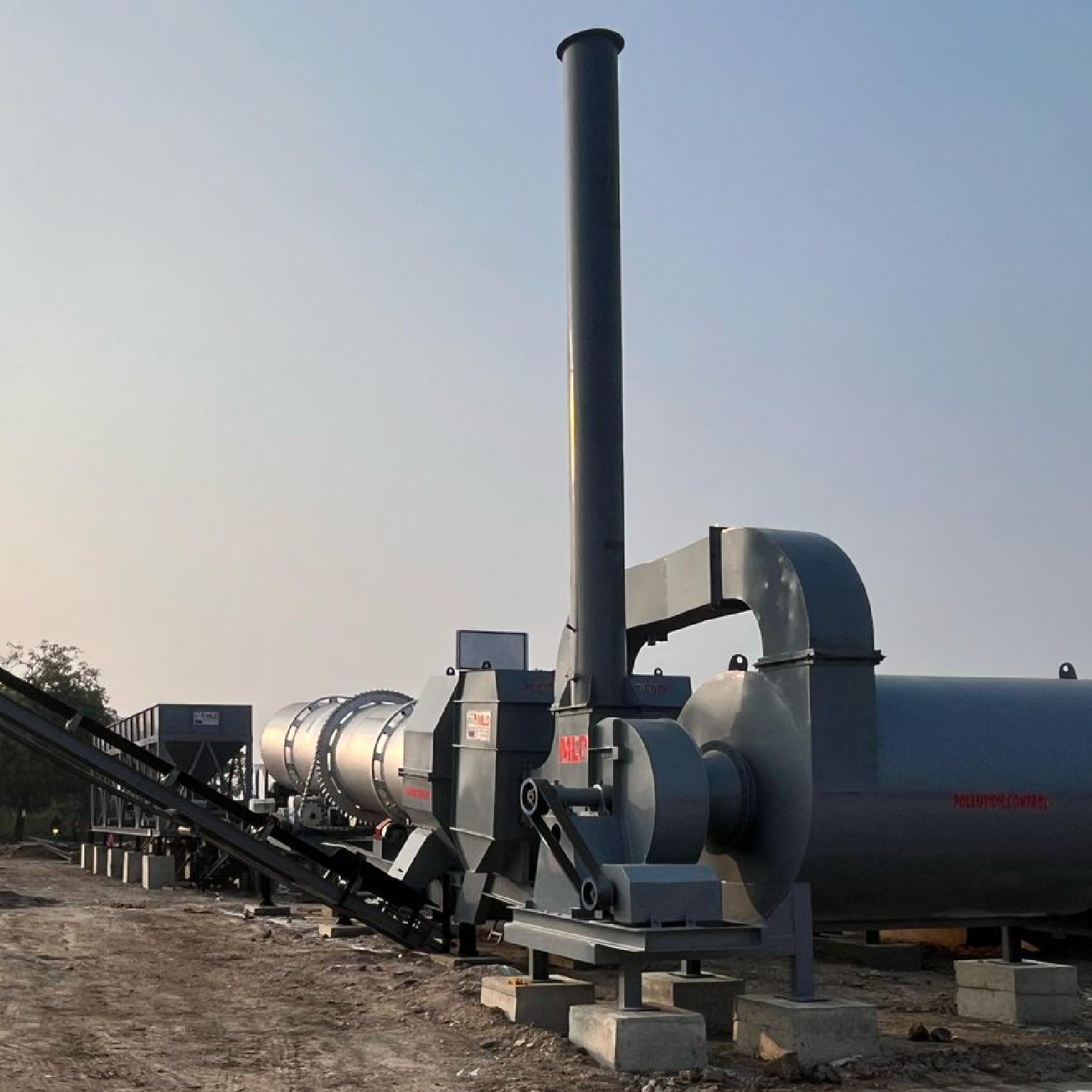

DRUM MIX PLANT DM Series

Description:

The DRUM MIX PLANT DM Series by MLD Industries offers high-efficiency, reliable asphalt mixing solutions for all your road construction needs. Designed with cutting-edge technology, the DM Series ensures consistent quality and performance. Featuring robust construction, user-friendly controls, and energy-efficient operation, these plants deliver superior asphalt mix at optimal costs. Ideal for both large-scale projects and smaller applications, the DM Series is engineered for durability, precision, and ease of maintenance. Choose the DM Series for unmatched productivity and excellence in asphalt production.

Technical Specification:

Plant Model
DM-45
DM-50
DM-55
DM-60
DM-65
Capacity Range (TPH)
40 to 60
60 to 90
80 to 100
90 to 120
120 to 150
THERMO DRUM
Dryer (L x D)
1.2 x 6.0
1.5 x 6.7
1.5 x 7.5
1.8 x 7.5
1.8 x 8.0
Exhauster (CFM)
10500
12500
12500
14500
14500
Burner Rating (Ltrs/Hr.)
200
275
275
450
450

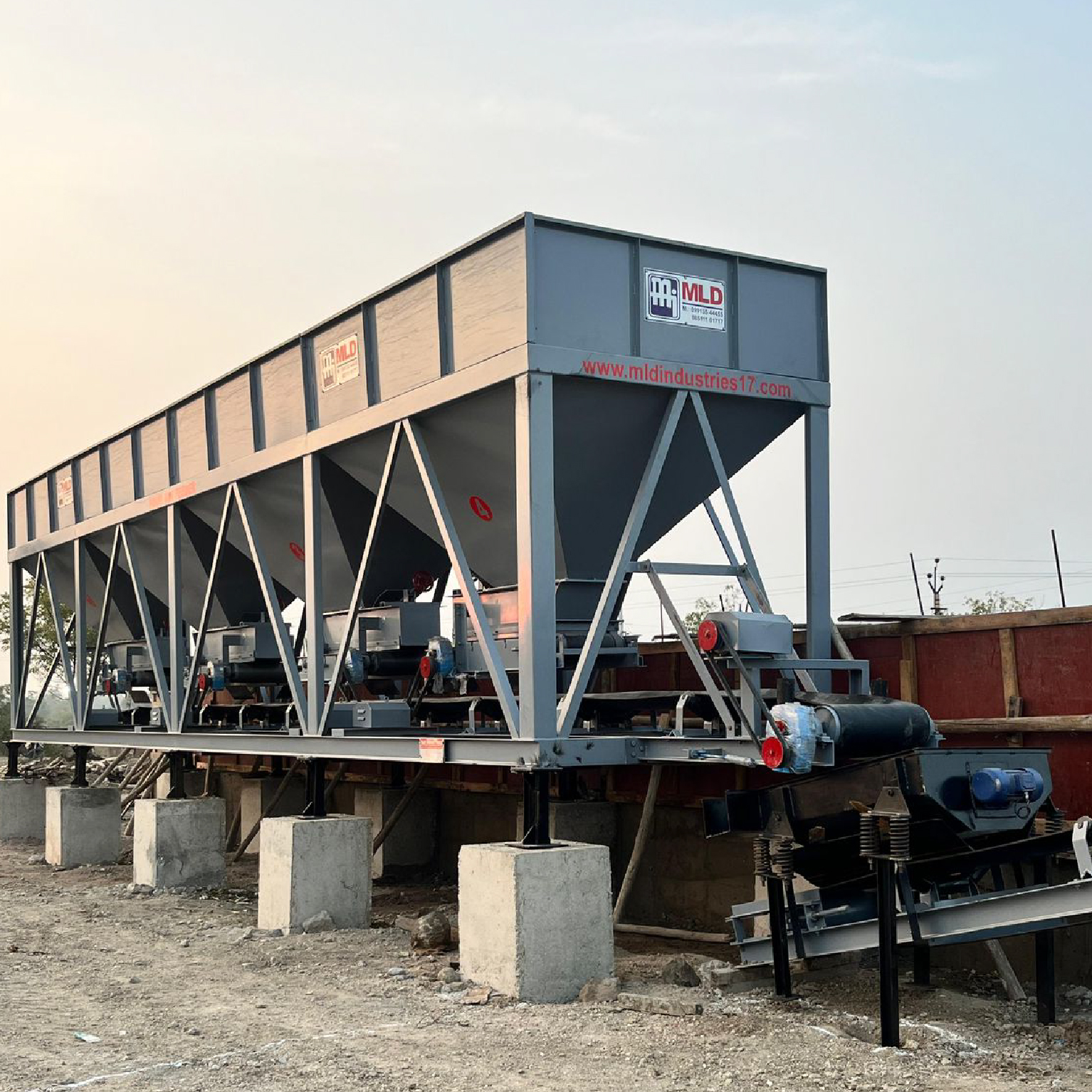

BIN FEEDER
No of Bin
4
4
4
4
4
Bin Capacity (MT)
32
40
40
54
60
Gathering Conveyor Belt
(W x L)
500 x 22450
600 x 24000
600 x 24000
600 x 24000
600 x 24000
SLINGER CONVEYOR
Conveyor Belt (W x L)
500 x 15 mtr
500 x 15 mtr
500 x 15 mtr
500 x 15 mtr
500 x 15 mtr
LOADOUT CONVEYOR
Loadout Conveyor Belt (W x L)
500 x 18 mtr
600 x 18 mtr
600 x 18 mtr
600 x 20 mtr
600 x 20 mtr
Hopper Capacity (Kg)
1000
1500
1500
1500
1500

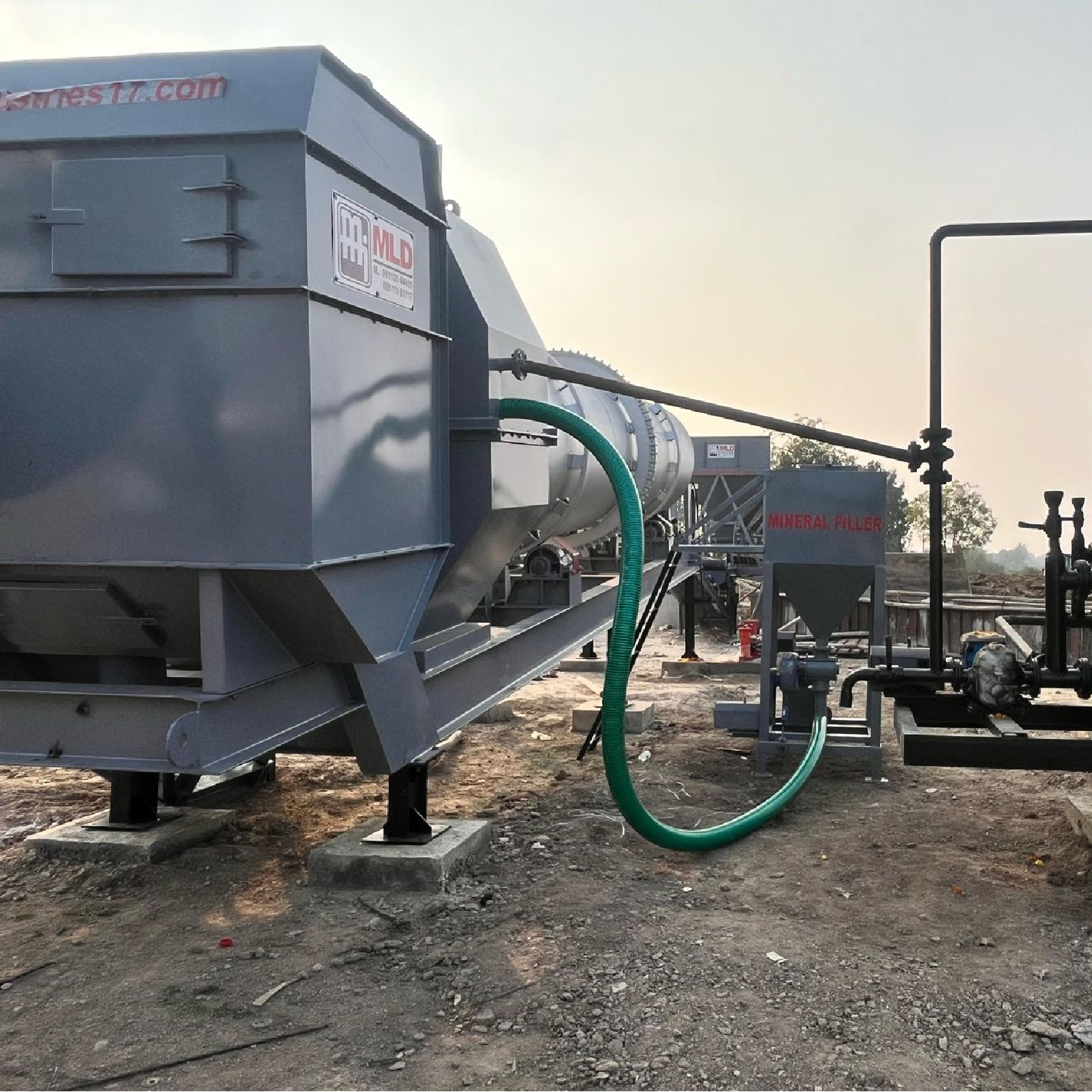

MINERAL FILLER UNIT
Rotary Valve (HP)
2
2
2
2
2
Blower (HP)
3
3
3
3
3
Capacity Matric m3
1.5
1.5
1.5
1.5
1.5
OVER SIZE REMOVAL SCREEN
Size
45 x 45 (mm)
45 x 45 (mm)
45 x 45 (mm)
45 x 45 (mm)
45 x 45 (mm)
DRYER AUTOMATIC BURNER
Fuel Pump (HP)
2
3
3
3
3
Blower
5
7.5
7.5
15
15
Hot Oil Pump (HP)
0.5
0.5
0.5
0.5
0.5
BITUMAN TANK
Capacity (MT)
15
20
20
20
20
Insulation
(Glasswool in mm)
50
50
50
50
50
LDO TANK
Capacity (Ltrs.)
3000
3000
3000
5000
10000
POLUTION CONTROL UNIT
Exhauster (HP)
15
25
25
40
40
TOTAL CONNECTED LOAD
Load (Kw)
63
72
72
100
100

Filter Using Product Tags

DRUM MIX PLANT DM Series

DRUM MIX PLANT DM Series

PRODUCT CATEGORY

DRUM MIX PLANT DM Series

Description:

Technical Specification:

please feel free to contact us

E-Mail Address : mldind11@gmail.com

2+10 = ?

PRODUCT RANGE

Quick Links

Contact Us

Plant Model	DM-45	DM-50	DM-55	DM-60	DM-65
Capacity Range (TPH)	40 to 60	60 to 90	80 to 100	90 to 120	120 to 150
THERMO DRUM
Dryer (L x D)	1.2 x 6.0	1.5 x 6.7	1.5 x 7.5	1.8 x 7.5	1.8 x 8.0
Exhauster (CFM)	10500	12500	12500	14500	14500
Burner Rating (Ltrs/Hr.)	200	275	275	450	450
BIN FEEDER
No of Bin	4	4	4	4	4
Bin Capacity (MT)	32	40	40	54	60
Gathering Conveyor Belt (W x L)	500 x 22450	600 x 24000	600 x 24000	600 x 24000	600 x 24000
SLINGER CONVEYOR
Conveyor Belt (W x L)	500 x 15 mtr	500 x 15 mtr	500 x 15 mtr	500 x 15 mtr	500 x 15 mtr
LOADOUT CONVEYOR
Loadout Conveyor Belt (W x L)	500 x 18 mtr	600 x 18 mtr	600 x 18 mtr	600 x 20 mtr	600 x 20 mtr
Hopper Capacity (Kg)	1000	1500	1500	1500	1500
MINERAL FILLER UNIT
Rotary Valve (HP)	2	2	2	2	2
Blower (HP)	3	3	3	3	3
Capacity Matric m3	1.5	1.5	1.5	1.5	1.5
OVER SIZE REMOVAL SCREEN
Size	45 x 45 (mm)	45 x 45 (mm)	45 x 45 (mm)	45 x 45 (mm)	45 x 45 (mm)
DRYER AUTOMATIC BURNER
Fuel Pump (HP)	2	3	3	3	3
Blower	5	7.5	7.5	15	15
Hot Oil Pump (HP)	0.5	0.5	0.5	0.5	0.5
BITUMAN TANK
Capacity (MT)	15	20	20	20	20
Insulation (Glasswool in mm)	50	50	50	50	50
LDO TANK
Capacity (Ltrs.)	3000	3000	3000	5000	10000
POLUTION CONTROL UNIT
Exhauster (HP)	15	25	25	40	40
TOTAL CONNECTED LOAD
Load (Kw)	63	72	72	100	100
